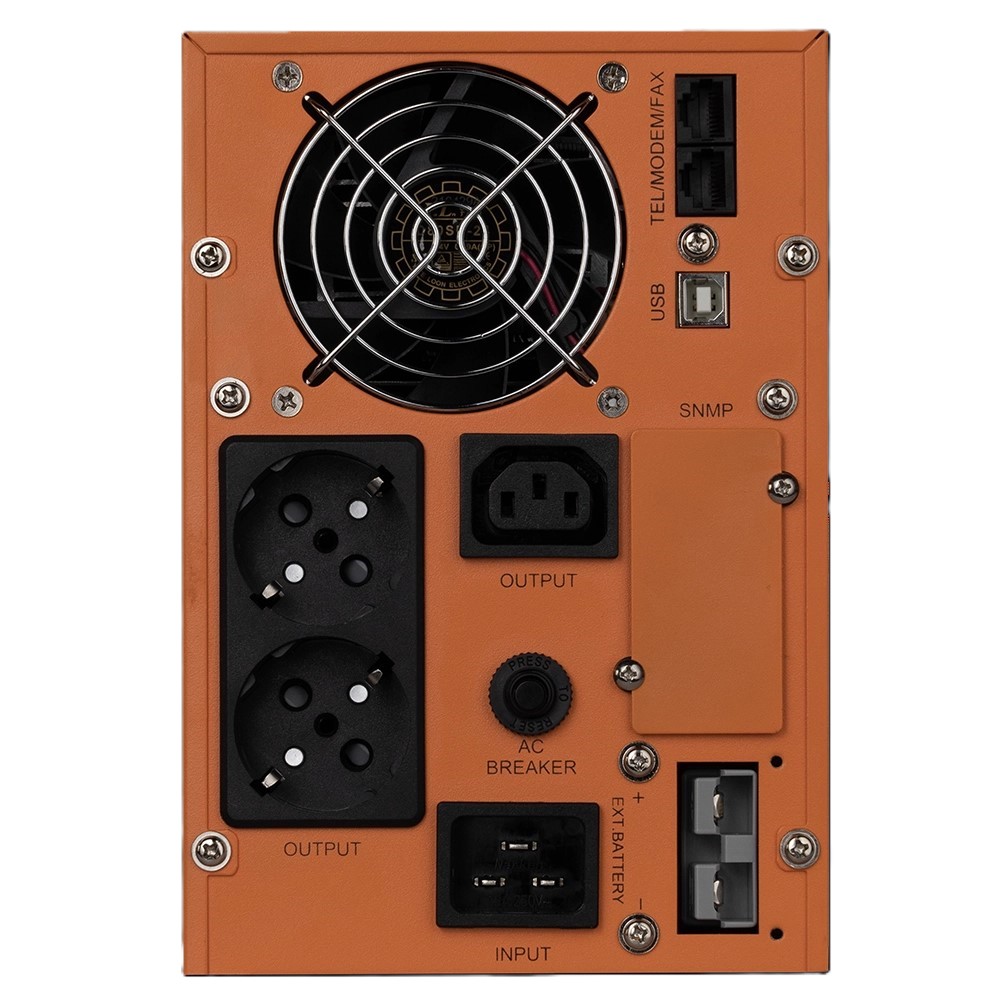

یوپیاس تراست فاران 1.5KV
TRUST 1K - 2*9 - 24VDC
- توپولوژی: لاین اینتراکتیو
- توان حقیقی: 1.2KW
- ولتاژ ورودی: 220V
- ولتاژ خروجی: 220V
- تعداد باتری: 2×9A
- تعداد خروجی: 2
- نوع طول موج: شبه سینوسی
انتخاب یوپیاس و باتری و تجهیزات جانبی را به سیستم هوشمند بسپارید انتخاب هوشمند یوپیاس و محاسبه هزینه
18 ماه گارانتی و 5 سال خدمات پس از فروش
موجودی: ۱۰ عدد
قیمت: ۲۷۷,۰۰۰,۰۰۰ ریال
DC INPUT:
Rated voltage:
24V
DC input range (default):
20 ~ 30 V
AC INPUT:
AC input range (bypass mode):
0 ~ 242 V / 264 V / 267 V /288 Vac for 200 V / 220 V /230 V / 240 VAC ± 10 Vac
AC input range (mains mode):
200 V: 145 ~ 260 Vac 220 V: 165 ~ 280 Vac 230 V: 175 ~ 290 Vac 240 V: 185 ~ 300 Vac
Ferquency input range:
50 Hz / 60 Hz(auto-sense), 50Hz / 60 Hz ± 5% ~ 15%
Generator connection:
Available (generator input power is settable)
OUTPUT:
Inverter output range:
200 V / 220 V / 230 V / 240 Vac ± 5%(settable)
AC output range(bypass mode):
0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac ± 10Vac
AC output range(mains mode):
200 V: 166 ~ 226 Vac 220 V: 188 ~ 245 Vac 230V:199~254Vac 240 V: 210 ~ 264 Vac
Output frequency:
50 / 60 Hz ± 0.3 Hz (settable)
Waveform:
Pure sine wave
inverter efficiency:
Max,80%
Energy saving mode:
settable (<3% load), enter in 80 s
No-load shutdown:
settable (<3% load), shutdown in 80 s
Transfer time:
≤ 10 ms
THDV(resistive load):
≤ 5 %
Protections:
Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature
Overload time (mains mode):
120 s for 110%, 80 s for 125%, 10 s for 150% (transfer to bypass mode)
Overload time (inverter mode):
80 s for 110%, 10 s for 125%, 5 s for 150% (shutdown directly)
Mute:
Automatic mute in 60 s or by manual
BATTERY:
Battery capacity(H: external expansion):
12V / 9Ah × 2
Charging current:
Standard model(S): 1A (default) Long time model(H): 10A (default);< 10A, set step 1 A; ≥ 10A, set step 5 A
Equalizing charge voltage:
Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable
Floating charge voltage:
Single battery 13.5 Vdc (default), 13.2 ~ 14.6 Vdc adjustable
low voltage alarm point:
Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc adjustable
low voltage shutdown point:
Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable
COMMUNICATIONS:
USB+RJ45:
Supports Windows®98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10
SNMP (optional):
Power management from SNMP manager and web browser (standard with slot)
OTHERS:
Operating temperature:
5°C ~ 40°C
Operating humidity:
Relative humidity ≤ 93%
Noise level:
≤ 50 dB(1M)
Dimensions(W × D × H) (mm):
144×345×215
Packaged dimensions(W × D × H) (mm):
236×427×316
Net weight(kg):
14.2
Gross weight(kg):
15.2
